Mikrotik cAP AC

cAP ac RBcAPGi-5acD2nD – International Version

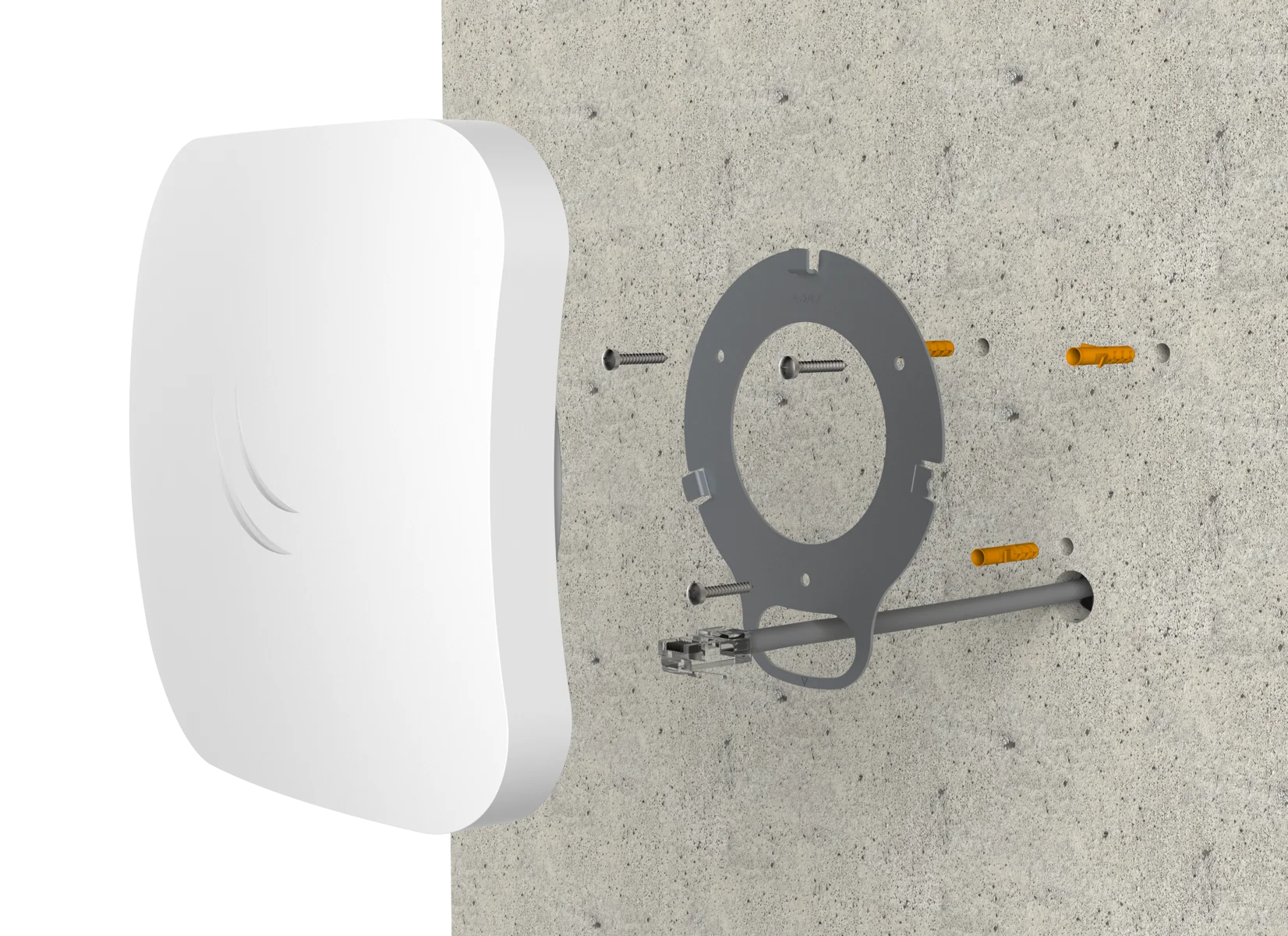

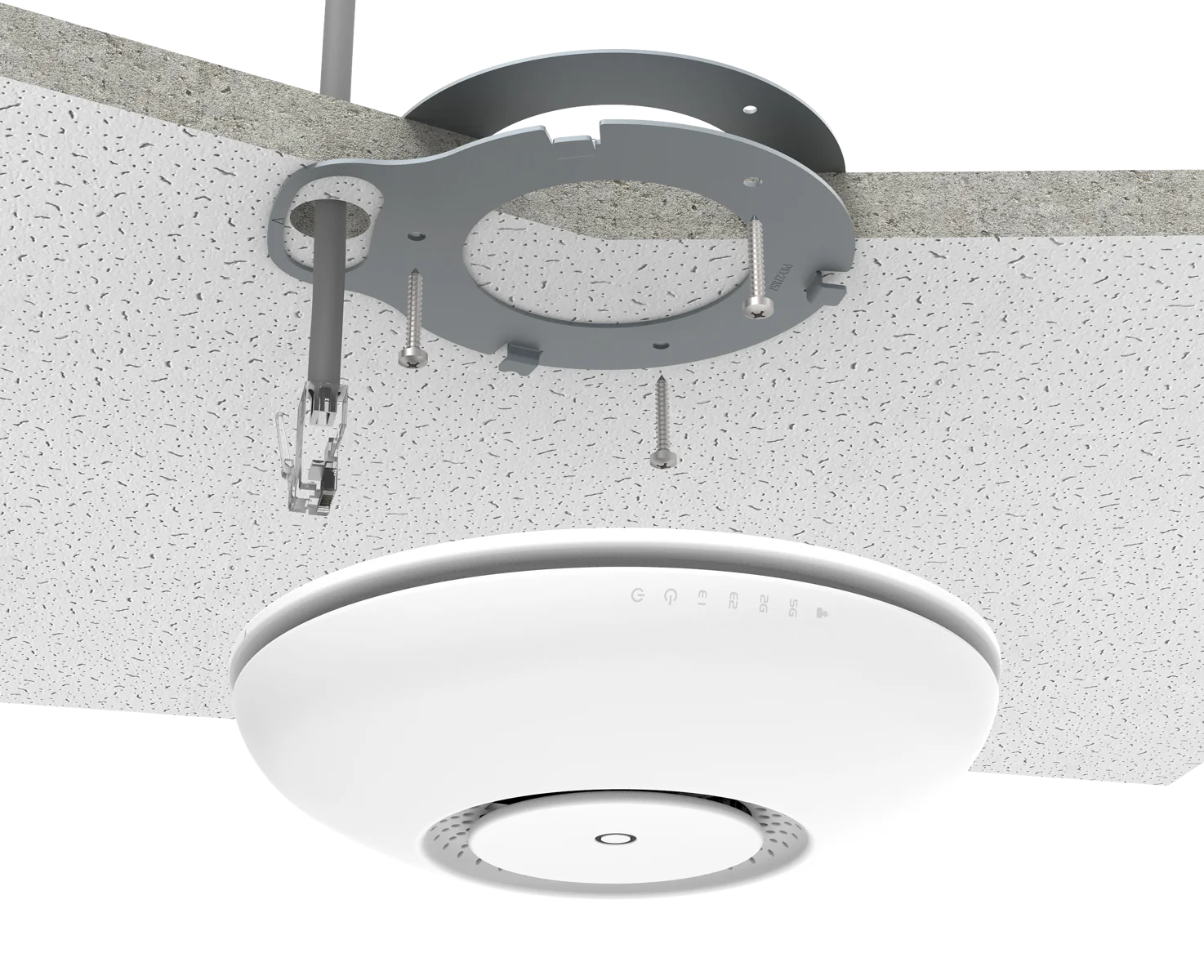

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it. Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output (up to 57V) on the second port.

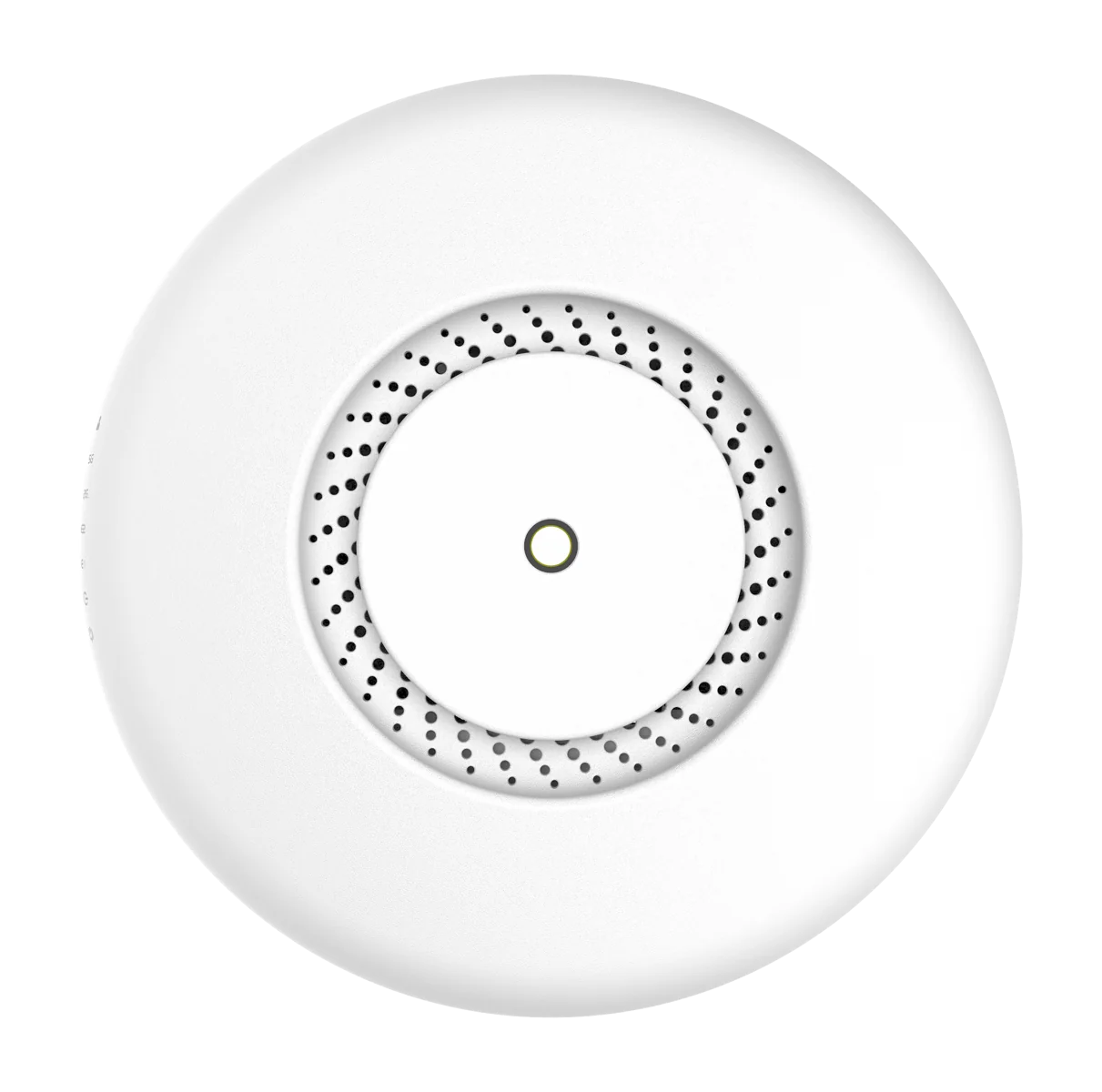

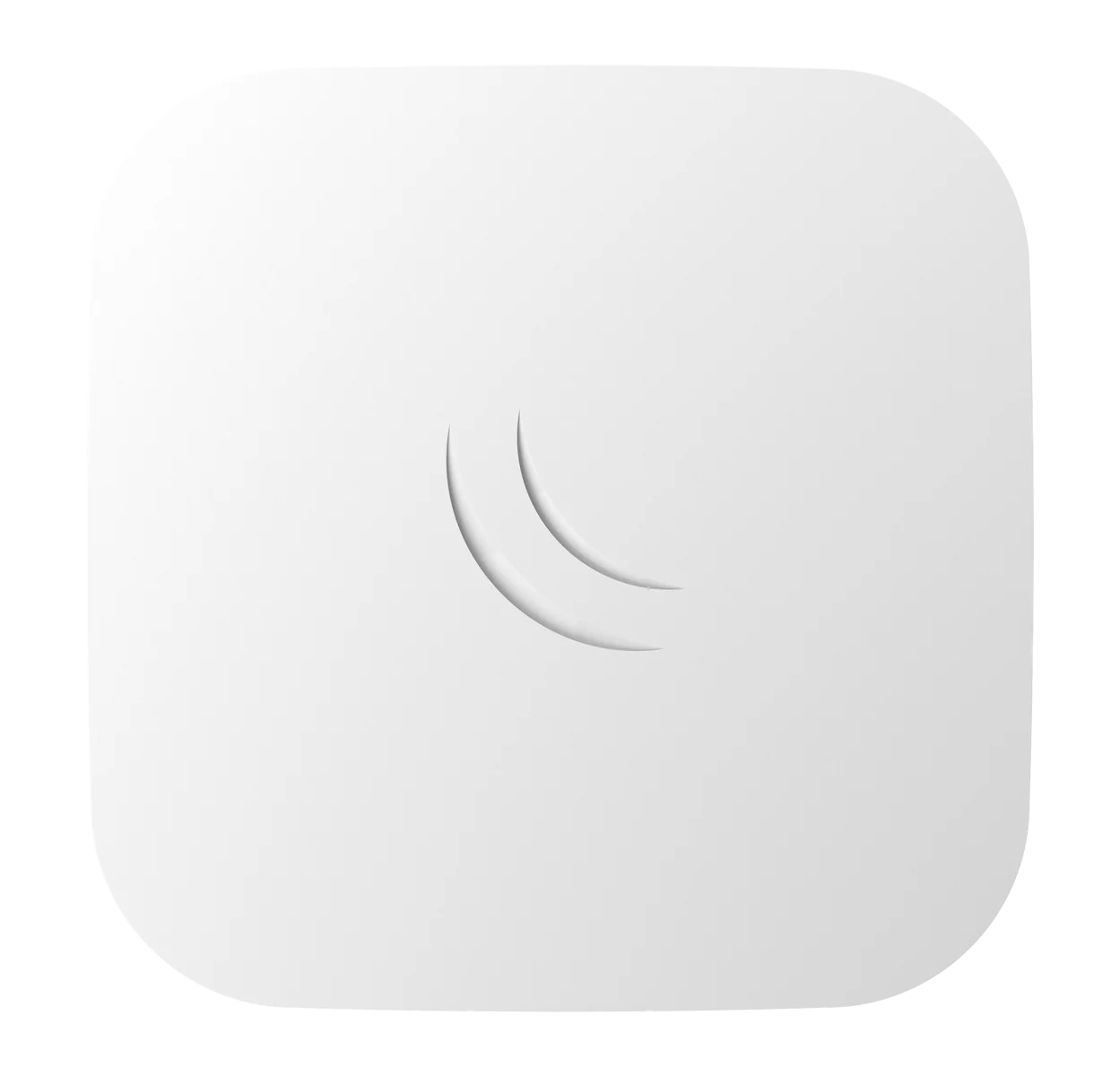

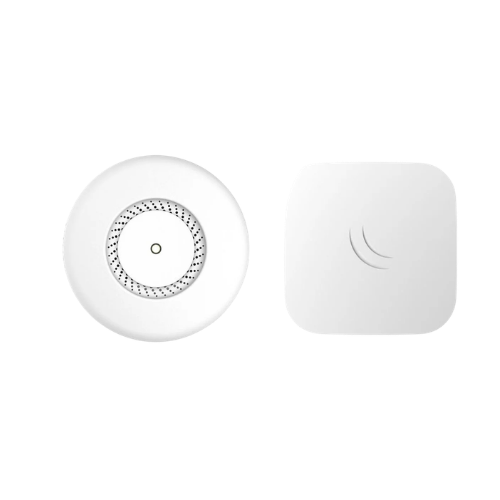

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with the push of a button – the customizable mode button in the device center will turn off all lights and sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script. The device comes bundled with two enclosures, so you can choose the design you like best.
The cAP ac is equipped with two Ethernet ports, allowing you to connect another device, to further extend your network. What’s more, the second Ethernet port supports passive PoE output (up to 57 V), so it can power a wide variety of RouterBOARDs and other devices, like IP cameras.

Technical Description

• General
  • CPU: IPQ-4018
  • CPU core count: 4
  • CPU nominal frequency: 716 MHz
  • Dimensions: Round case: 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
  • License level: 4
  • Operating System: RouterOS
• Powering
  • Max Power consumption: 13W
  • PoE in: 802.3af/at
  • PoE out: Passive PoE up to 57V
  • PoE in input Voltage: 17-57 V
  • Number of DC inputs: 1 (PoE-IN)
• Wireless
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n
  • Antenna gain dBi for 2.4 GHz: 2
  • Wireless 2.4 GHz chip model: IPQ-4018
  • Wireless 5 GHz number of chains: 2
  • Wireless 5 GHz standards: 802.11a/n/ac
  • Antenna gain dBi for 5 GHz: 2.5
  • Wireless 5 GHz chip model: IPQ-4018
• Ethernet
  • 10/100/1000 Ethernet ports: 2
  • Size of RAM: 128 MB
  • Storage size: 16 MB
  • Storage type: FLASH
  • Tested ambient temperature: -40 to 50° C
