hEX S RB760iGS

Part: RB760iGS



ETHERNET ROUTERS

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

Original price was: C$ 108.23.Current price is: C$ 96.50.

Guaranteed Safe Checkout

Features & Compatibility

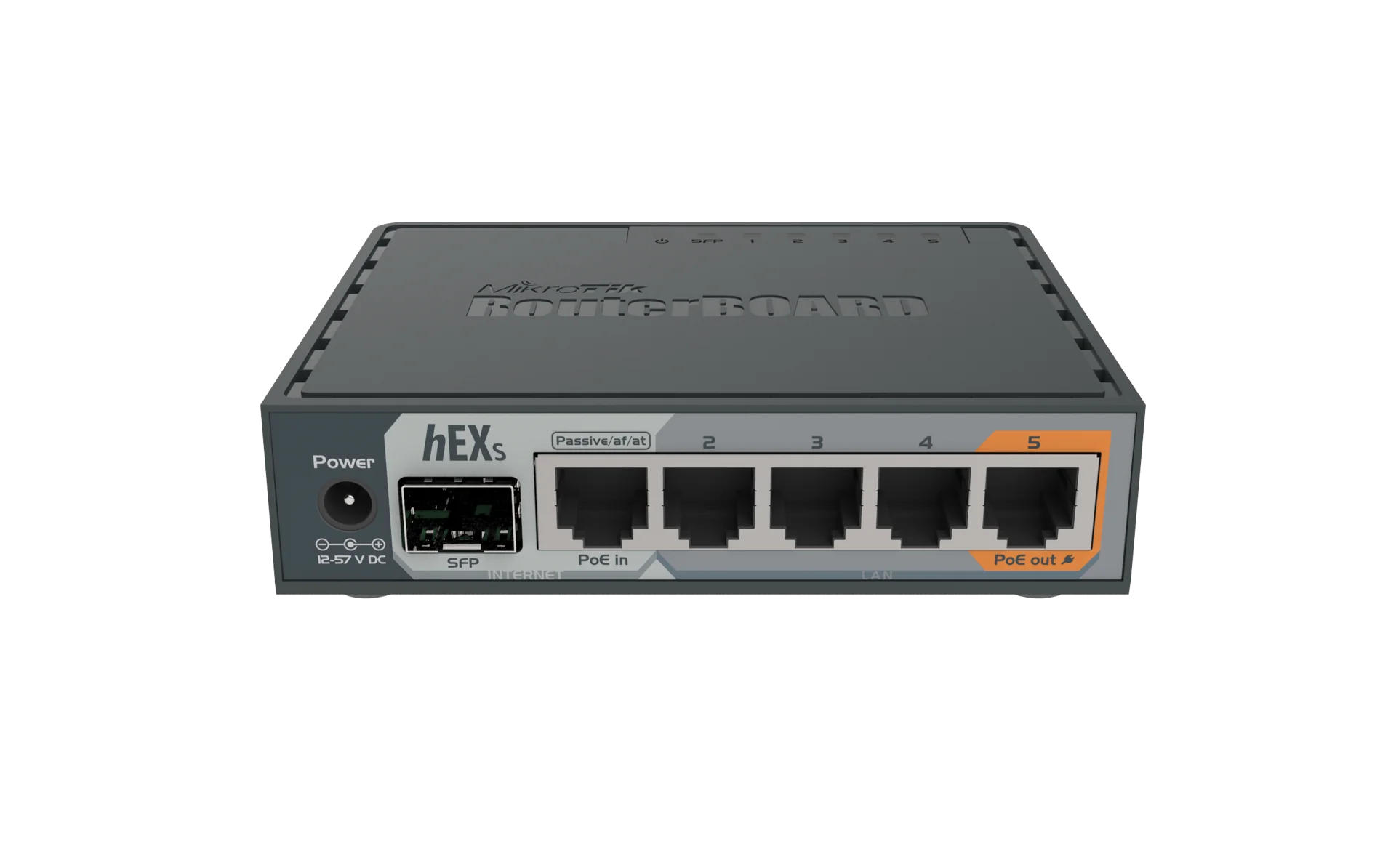

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications

Details
Product code RB760iGS
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Switch chip model MT7621A
Dimensions 113 x 89 x 28 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 24 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Peripherals

Details
Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Additional information

Weight .340 kg
Dimensions 11.3 × 8.9 × 2.8 cm
Brand

Mikrotik
