PRODUCT SPECIFICATIONS

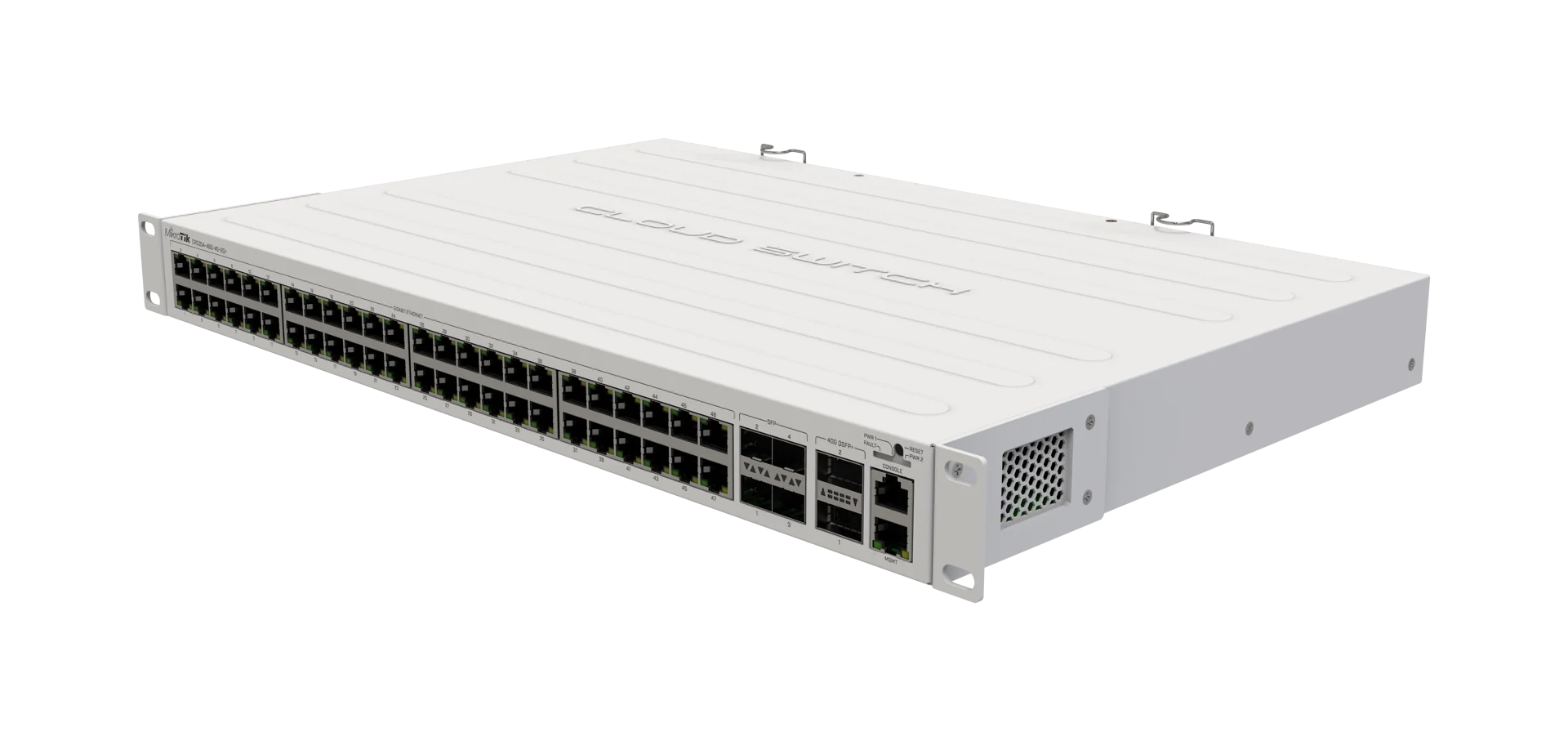

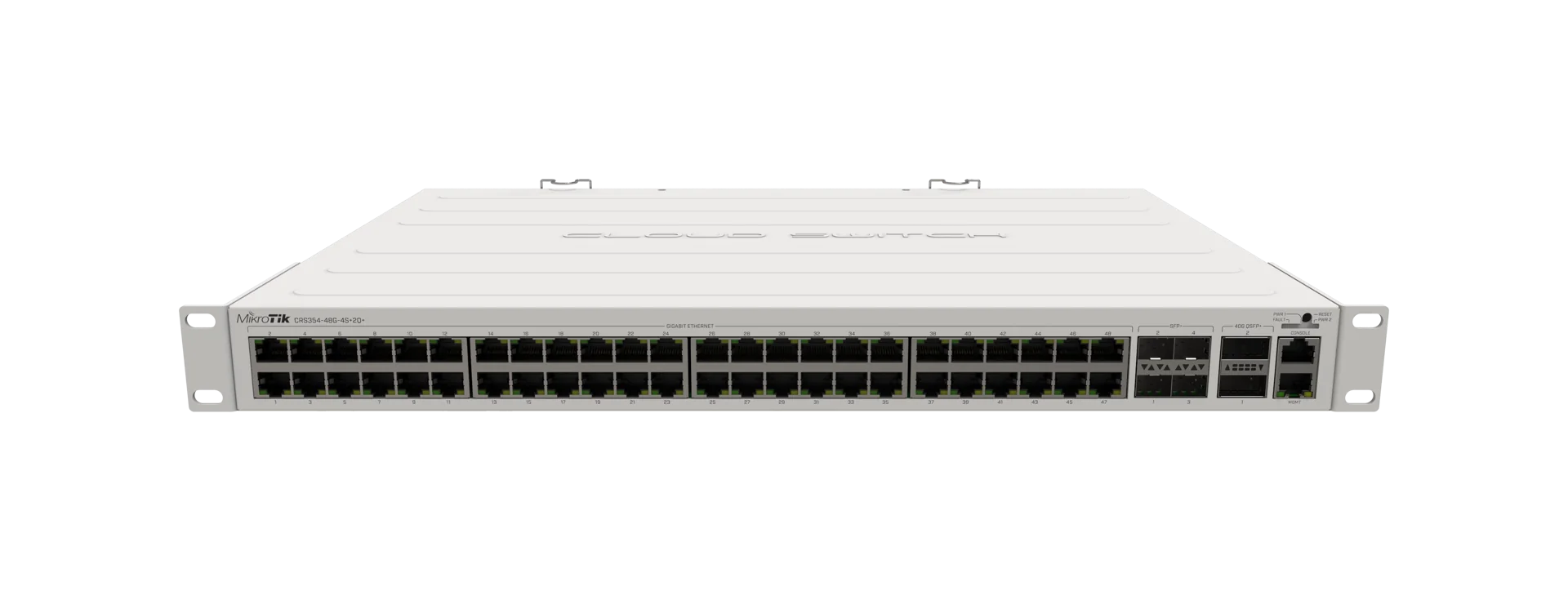

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! <
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Technical Description
- Specifications
- Product code: CRS354-48G-4S+2Q+RM
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Switch chip model: 98DX3257
- Dimensions: 297 x 443 x 44 mm
- RouterOS license: 5
- Operating System: RouterOS v7 / SwitchOS
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200’000 hours at 25C
- Tested ambient temperature: -20°C to 60°C
- Suggested price: $599.00
- Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Max power consumption: 60 W
- Max power consumption without attachments: 50 W
- Cooling type: 3 fans
- Ethernet
- 10/100 Ethernet ports: 1
- 10/100/1000 Ethernet ports: 48
- Fiber
- SFP+ ports: 4
- Number of 40G QSFP+ ports: 2
- Peripherals
- Serial console port: RJ45
- Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP20
