Power Box Pro RB960PGS- PB

Name: Power Box Pro RB960PGS- PB
Brand: Mikrotik
SKU: 1123
Price: 123.00 CAD
Availability: InStock

Mikrotik

ETHERNET ROUTERS

Five Gigabit Ethernet Router with 4xPoE-out ports, SFP cage and outdoor enclosure

ENQUIRY!

Original price was: C$ 149.06.Current price is: C$ 123.00.

In stock

Compare

Add to wishlist

Ordered:13

Items available:3

Guaranteed Safe Checkout

Features & Compatibility

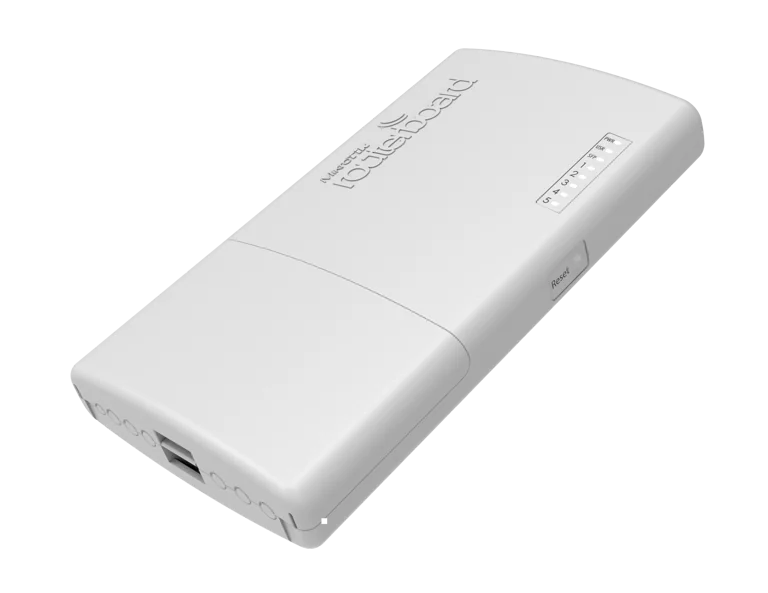

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.

DATASHEET

Specifications

Details
Product code	RB960PGS-PB
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	800 MHz
Switch chip model	QCA8337
Dimensions	125 x 52 x 225 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	54 W
Max power consumption without attachments	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	2 A
