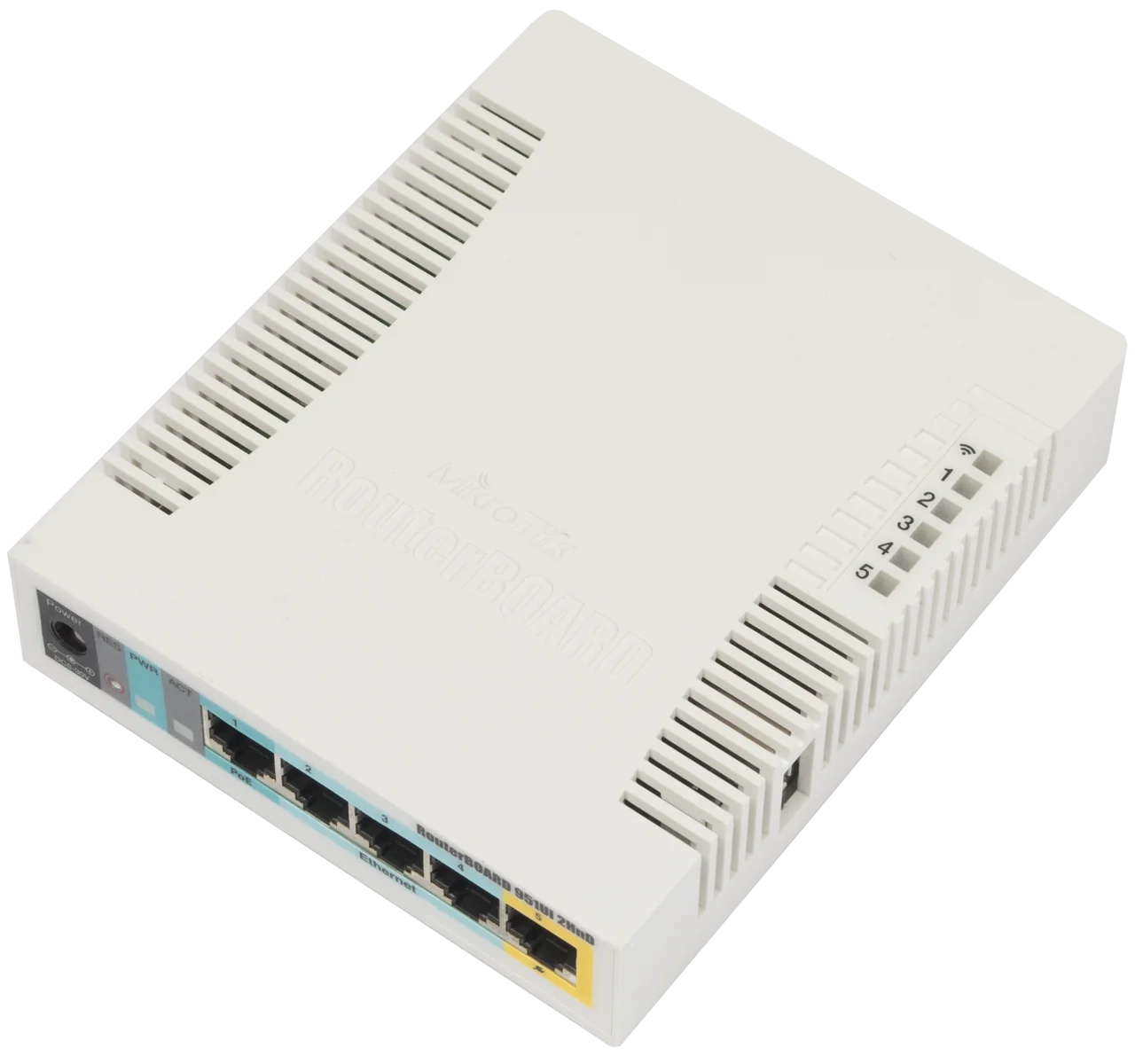

MikroTik RB951Ui-2HnD Indoor Wireless Router

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Technical Description

• Specifications
  • Product code: RB951Ui-2HnD
  • Architecture: MIPSBE
  • CPU: AR9344
  • CPU core count: 1
  • CPU nominal frequency: 600 MHz
  • Dimensions: 113x138x29mm
  • RouterOS license: 4
  • Operating System: RouterOS
  • Size of RAM: 128 MB
  • Storage size: 128 MB
  • Storage type: NAND
  • MTBF: Approximately 100’000 hours at 25C
  • Tested ambient temperature: -20C +60C
• Wireless capabilities
  • Wireless 2.4 GHz Max data rate: 300 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n
  • Antenna gain dBi for 2.4 GHz: 2.5
  • Wireless 2.4 GHz chip model: AR9344
  • Wireless 2.4 GHz generation: Wi-Fi 4
• Ethernet
  • 10/100 Ethernet ports: 5
• Peripherals
  • Number of USB ports: 1
  • USB Power Reset: Yes
  • USB slot type: USB type A
  • Max USB current (A): 1
• Powering
  • Number of DC inputs: 2 (PoE-IN, DC jack)
  • DC jack input Voltage: 8-30 V
  • Max power consumption: 24 W
  • Max power consumption without attachments: 7 W
  • Cooling type: Passive
  • PoE in: Passive PoE
  • PoE in input Voltage: 8-30 V
• PoE-out
  • PoE-out ports: Ether5
  • PoE out    Passive: PoE
  • Max out per port output (input 18-30 V): 500 mA
  • Max total out (A): 500 mA
