MikroTik D53G-5HacD2HnD-TC&FG621-EA – Chateau LTE6

Part: D53G-5HacD2HnD-TC&FG621-EA

Original price was: C$ 202.76.Current price is: C$ 171.36.

Only 2 left in stock

Ordered:7
Items available:2

Guaranteed Safe Checkout

Features & Compatibility

MORE INFORMATION

PRODUCT DESCRIPTION

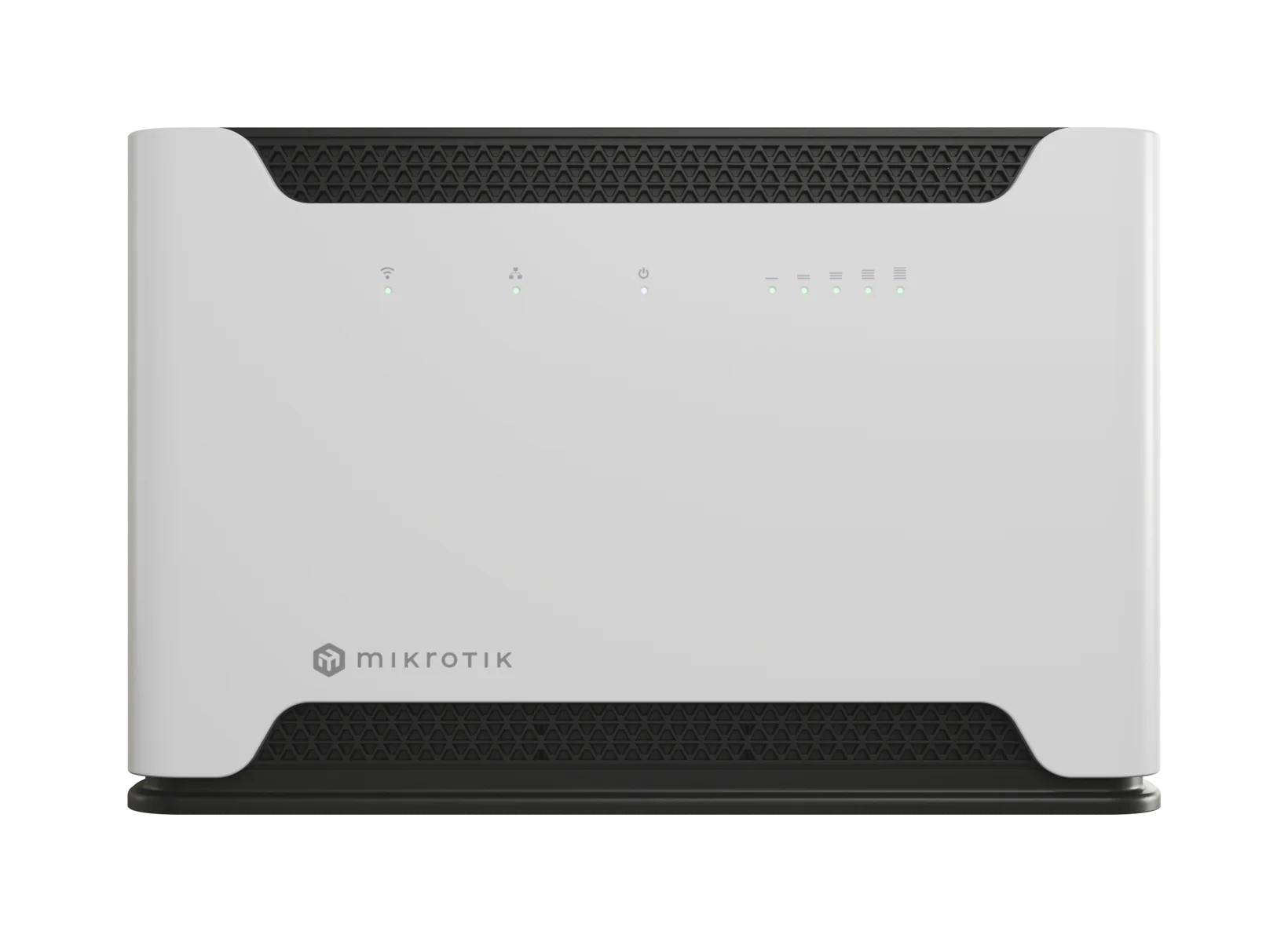

#1: D53G-5HacD2HnD-TC&FG621-EA – Chateau LTE6

Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. Not only do they lack features, speed, and power, the designs can get weird with all the black boxes and spiky antennas. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau. It features a purposeful balance of extensive features, accessible pricing, and classy design that will fit right in.

Chateau is a high-speed, dual-band home access point that adapts to your needs. It features a powerful quad-core ARM CPU, a fast, reliable, and responsive CAT6 LTE modem for excellent mobile connectivity, and the most advanced networking software on the market – RouterOS. But don’t worry – it can be as simple or as complex as you want. Chateau is designed to serve the most diverse user groups: IT professionals can push it to its limits, regular households can plug it in and forget it exists. With Chateau, you will always have options.

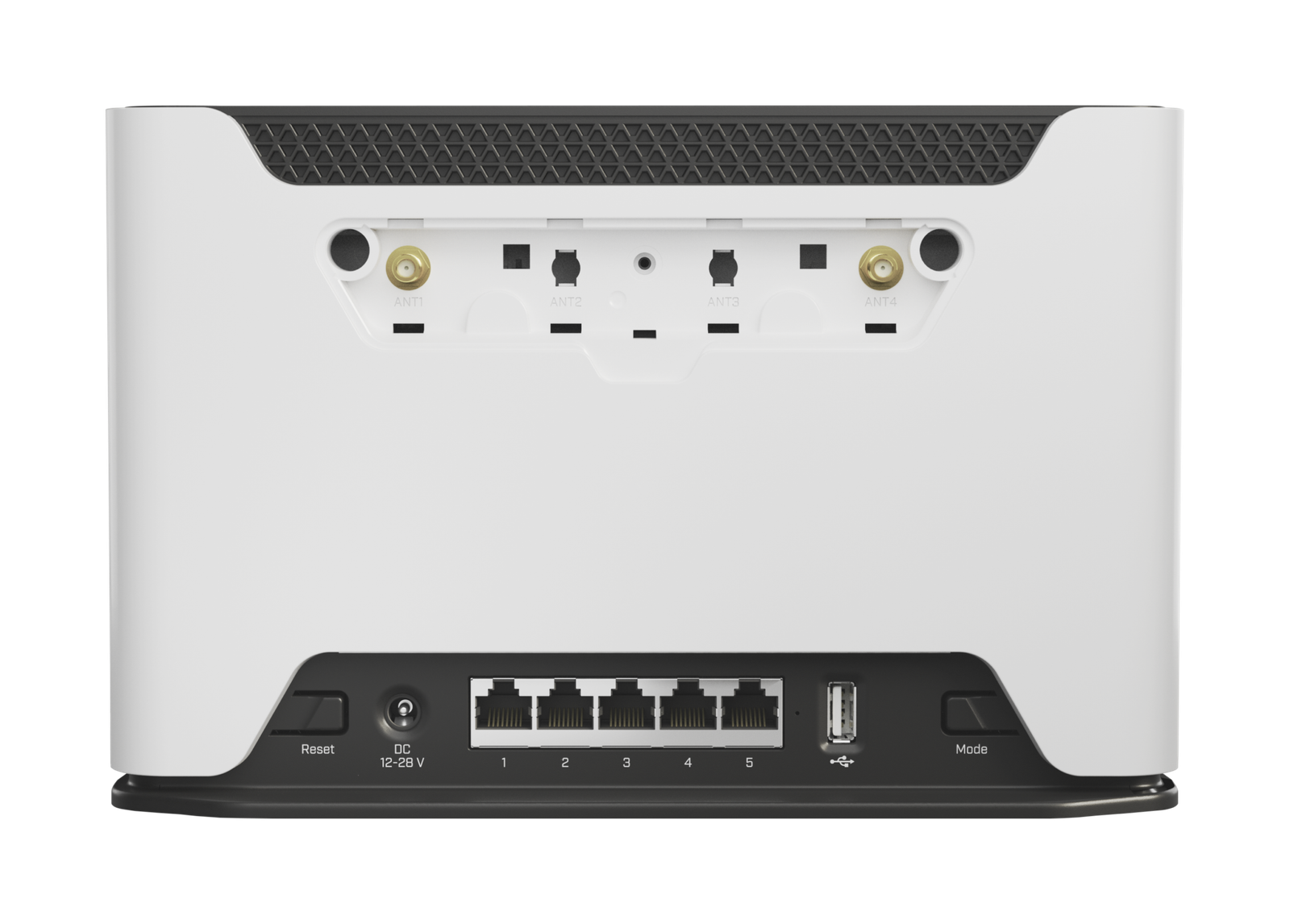

5x Gigabit Ethernet ports can be useful to connect all your home devices (media servers, PC towers, TV’s). You can also keep the LTE as a backup and use the Gigabit Ethernet to connect to a wired ISP for even higher speeds!

Remove the bottleneck in your mobile setup

Do you dream of escaping the hustle and bustle of the city and moving to the countryside? Perhaps you’ve already made the move but are frustrated by the slow internet speeds. Fear not, because Chateau is here to solve all your connectivity problems.

Many rural households are limited by cheap, featureless LTE routers that simply can’t handle the demands of modern internet usage. That’s where Chateau comes in. When the leading mobile operator in Latvia – LMT – replaced their previous client routers with Chateau devices, customer satisfaction went through the roof! Same LTE towers, same data plans, and a brand new Chateau – just like that! What is the point of having brand new phones, excellent LTE coverage, high-end laptops, and so on… if your old router is the bottleneck?

The freedom of LTE

Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Perfect for all walks of life

Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications… You can even automate complex trigger notifications. For example: “WARNING, WARNING! Your bandwidth has reached X amount for Y duration!” If you can imagine it – RouterOS can achieve it. However, if you don’t need all the complex stuff – Chateau can still be your best friend. In fact, this is the best choice for mobile operators that don’t want their clients to do any configuration. Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill. And we offer different label or printed branding options on volume orders. Furthermore, we can offer special project pricing and additional discounts for mobile operators to bring the costs down even more!

You don’t have to wait for cable network expansion to have fast and steady Internet at home. Mobile networks are great. If you’re using a Chateau.



#2: Included in delivery

  • 1x D53G-5HacD2HnD-TC&FG621-EA (Chateau LTE6)
  • 1x 24V 1.2A power adapter
  • 1x UTP Flat Cable (1.5m)



#3: Specifications – Technical details

Details
Product code D53G-5HacD2HnD-TC&FG621-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
Switch chip model IPQ-4019
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL 2×2
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86335904

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 21 W
Max power consumption without attachments 15 W
Cooling type Passive

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70



#4: Test results according to RFC2544

Ethernet test results

D53G-5HacD2HnD-TC&FG621-EA IPQ-4019 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Bridging 25 bridge filter rules 162,5 1973.4 351,2 1438.5 352,1 180.3
Routing none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Routing 25 simple queues 162,5 1973.4 468,6 1919.4 493,4 252.6
Routing 25 ip filter rules 162,5 1973.4 222,8 912.6 227,4 116.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

D53G-5HacD2HnD-TC&FG621-EA IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Additional information

Weight .700 kg
Dimensions 24 × 67 × 2.5 cm
Brand

Mikrotik
