PRODUCT SPECIFICATIONS
SKU: CCR2004-16G-2S+ – 16x Gigabit Ethernet ports, 2x10G SFP+ cages. In a blissful silence! Luxury you deserve for the price you can afford.
Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference, this powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

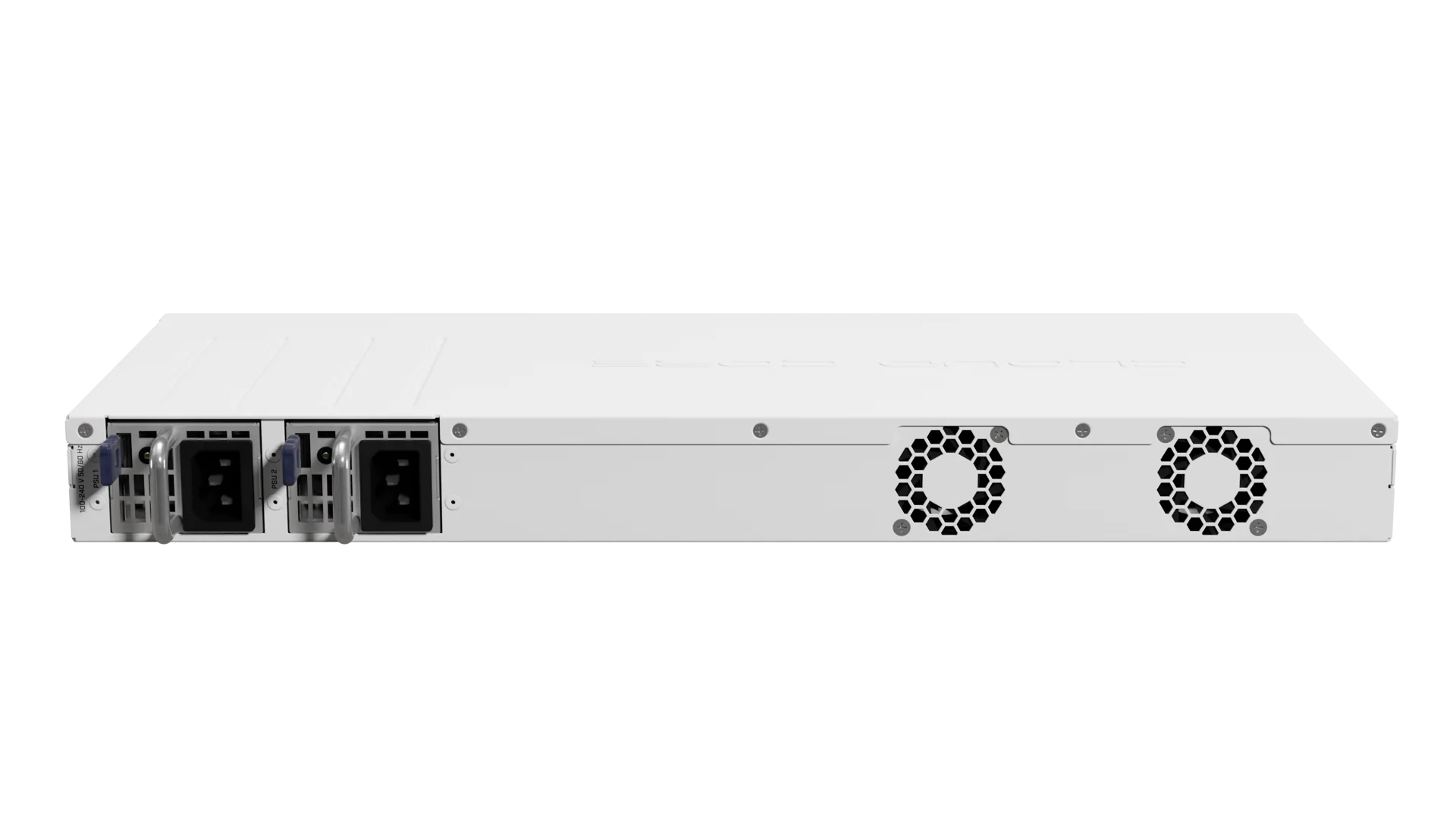

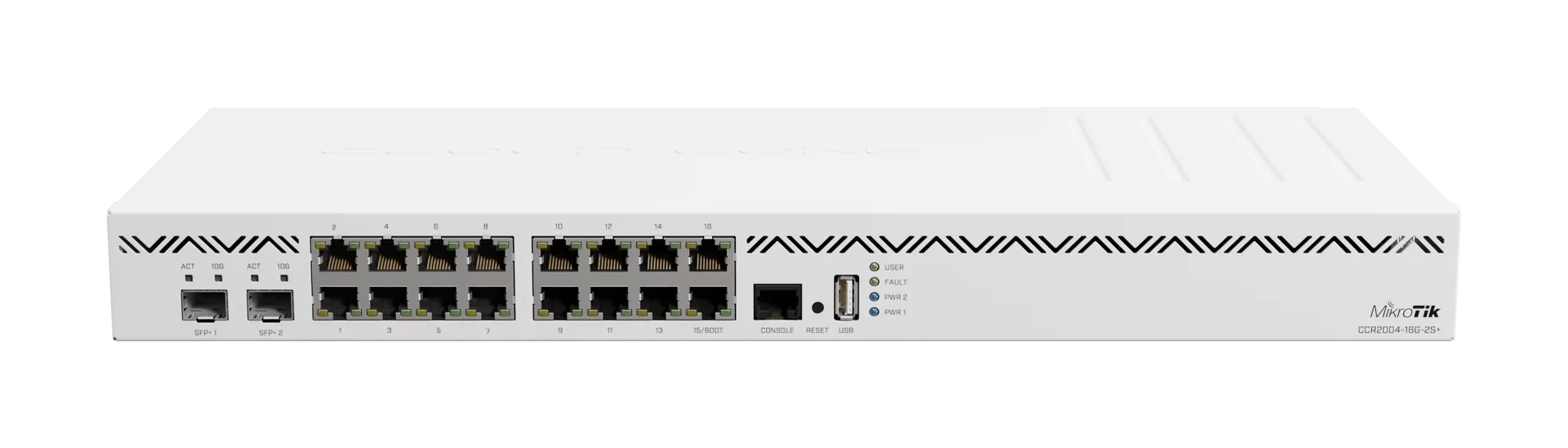

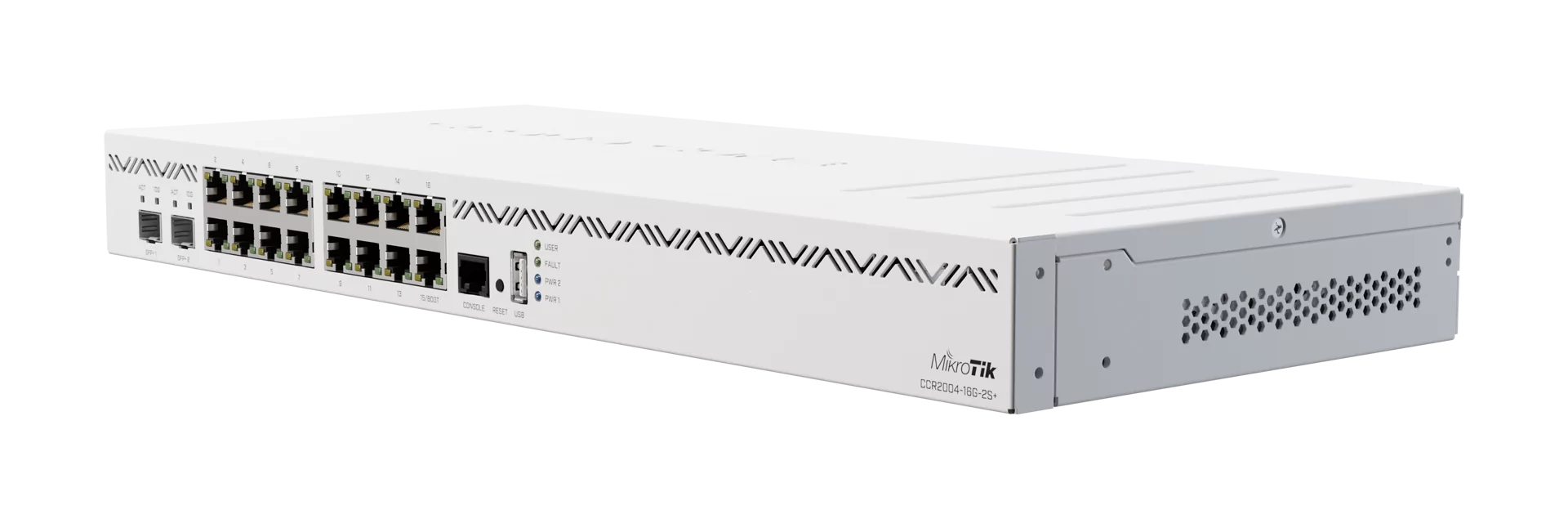

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage. No bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot.
One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
Technical Description
- Details
- Product code: CCR2004-16G-2S+
- Architecture: ARM 64bit
- CPU: AL32400
- CPU core count: 4
- CPU nominal frequency:1700 MHz
- Dimensions: 443 x 210 x 44 mm
- RouterOS license: 6
- Operating System: RouterOS (v7 only)
- Size of RAM: 4 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200’000 hours at 25C
- Tested ambient temperature: -20°C to 60°C
- IPsec hardware acceleration: Yes
- Powering
- Number of AC inputs: 2
- AC input range:Â 100-240
- Frequency (Hz):Â 50-60
- Max power consumption:Â 48 W
- Max power consumption without attachments: 35 W
- Cooling type: 2 fans
- Ethernet
- 10/100/1000 Ethernet ports: 16
- Fiber
- SFP+ ports   2
- Peripherals
- Serial console port: RJ45
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB 3.0 type A
- Max USB current (A):Â 0.9
- Other
- CPU temperature monitor:Â Yes
- PCB temperature monitor:Â Yes
- Voltage Monitor:Â Yes
- Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP20
