PRODUCT SPECIFICATIONS

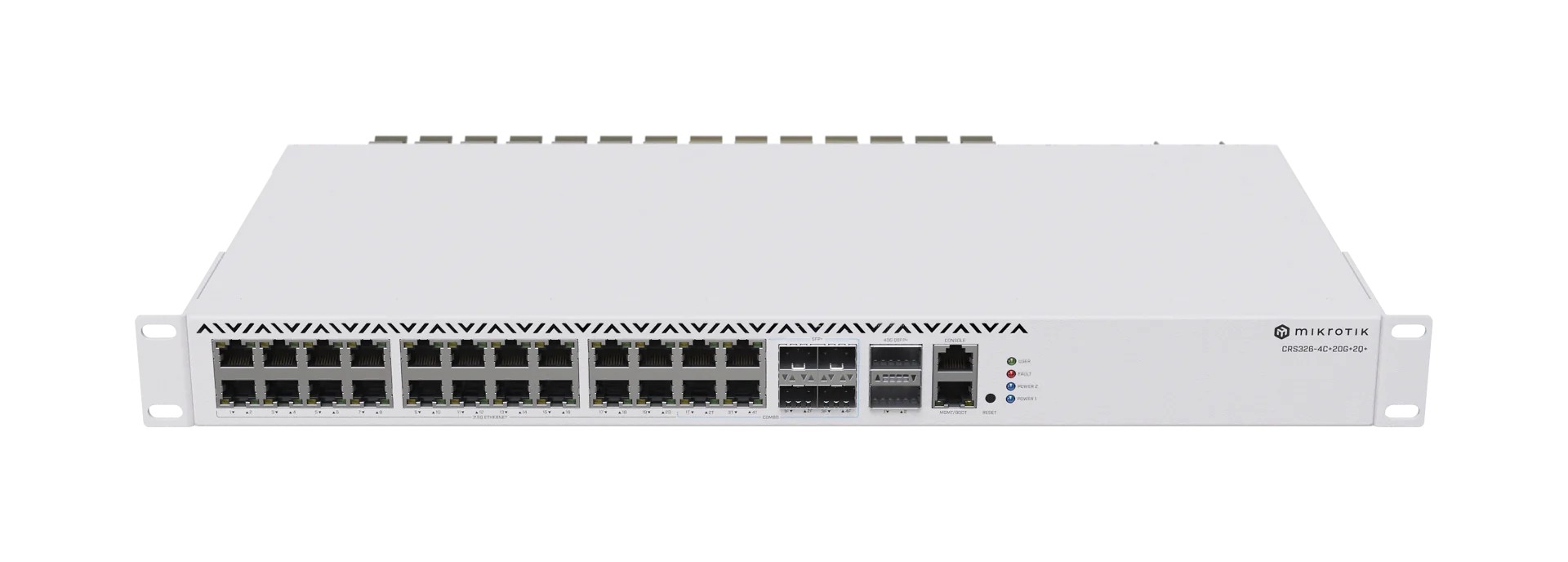

MikroTik RouterBOARD CRS326-4C+20G+2Q+RM
2.5 Gigabit Ethernet ports, 4x COMBO ports 10G SFP+, 40 Gbps QSFP+, RouterOS v7, License level 6
Our top-of-the-line switch with incredible 2.5 Gigabit port density, combo ports, and even a pair of 40 Gbps QSFP+ cages.
More offices, studios, and other professional environments are making the switch to the fast and reliable 2.5 Gigabit standard. So we wanted to create an affordable solution that could be at the heart of this everchanging landscape, making your life easier, saving your budget, and offering extra flexibility with excellent port-density and additional ultra-fast fiber interfaces. The new CRS326 offers all that and even more!
There are 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports that can either be used as 4x additional 2.5 Gigabit Ethernet ports OR as 10G SFP+ interfaces, and on top of all that – there are 2x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity. Practical and future-proof
The mighty Marvell Prestera switch-chip that comes with a dedicated CPU can handle all your daily tasks without breaking a sweat. VLAN’s, Jumbo frames, link aggregation, ACL rules… You can even do some Layer3 routing!
Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run. And we’ve included everything you need to secure this marvelous switch in a standard 19” rackmount!
Technical Description
| CPU | QCA9531 650 MHz |
| CPU architecture | MIPSBE |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| RAM type | DDR2 |
| Storage | 32 MB, NAND |
| Number of 100M Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |
| Number of 40G QSFP+ ports | 2 |
| Number of Combo 10G Ethernet/ SFP+ ports | 4 |
| Operating system | RouterOS v7, License level 6 |
| Switch chip model | 98DX8332 |
| Switch connection to CPU | 1 Gbps |
| Dimensions | 443 x 258 x 44 mm (17.44″ x 10.15″ x 1.73″) |
| Operating temperature | -20°C to +60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Nominal voltage | 12 V |
| Nominal current | 10.8 A |
| Max power consumption (without attachments) | 51 W |
| Max power consumption | 70 W |
