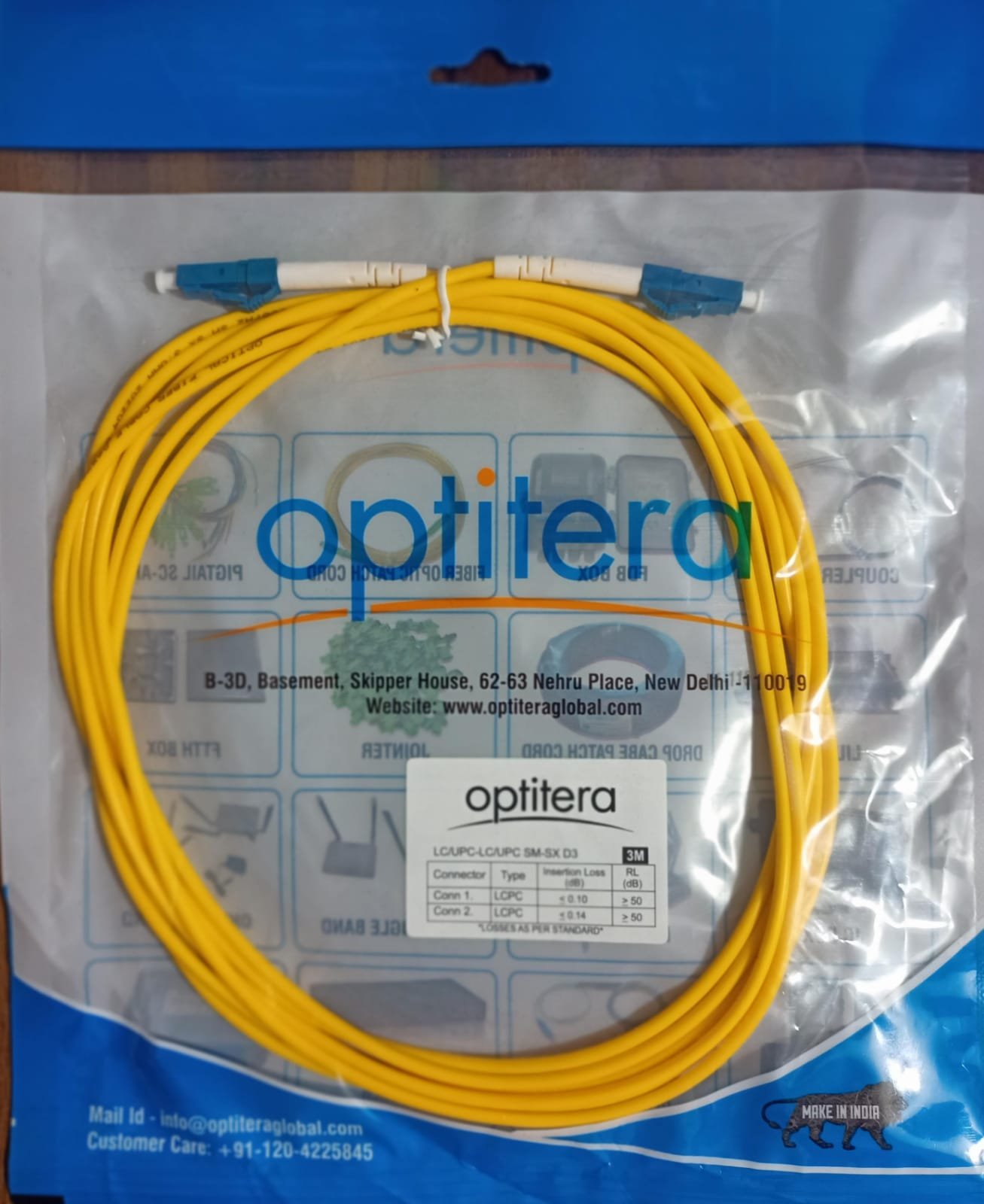

LC/UPC-LC/UPC SM SX D3 3M

Specifications
Connector Type – LC to LC
Polish Type – UPC to UPC
Fiber Mode – OS2 9/125μm
Fiber Count – Duplex
Fiber Grade – G.657.A1
Min. Bend Radius – 10/5D (Dynamic/Static)
Cable Outside Diameter (OD) – 3.0mm
Cable Jacket – Riser (OFCR-Optical Fiber Conductive Riser)
Fiber Cords Structure – Single Armored, Stainless Steel Tube
Tensile Load – 120/225N (Long/Short Term)
Insertion Loss – ≤0.3dB
Return Loss – ≥50dB
Operating Temperature – (-25~70°C)
Storage Temperature – (-25~70°C)
*OFCR stands for optical fiber conductive riser. As for OFNR but with conductive elements in the cable.
