A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.
Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything – and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

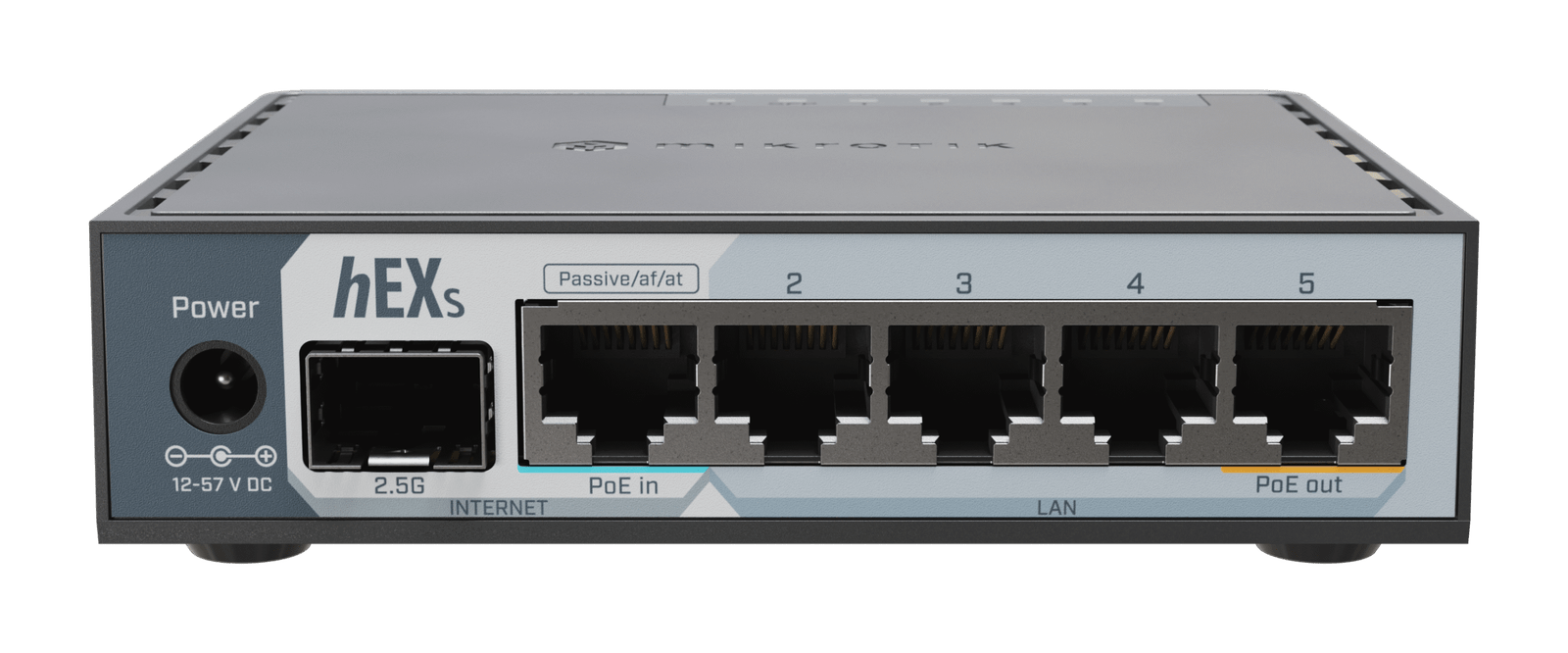

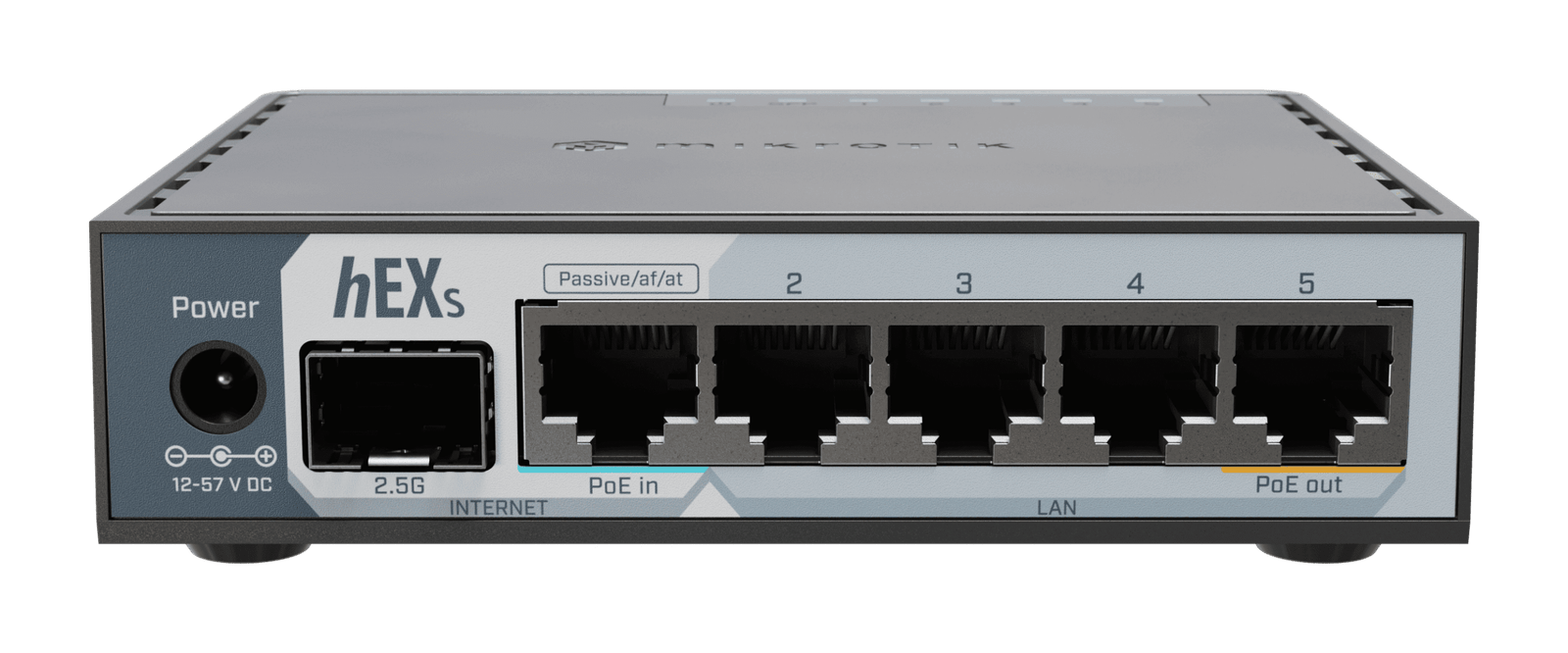

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge – full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more – so you can build the wired network you’ve always wanted.
Specifications
| Details | |
|---|---|
| Product code | E60iUGS |
| Architecture | ARM |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $69.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 5 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 0.5 A |
| High voltage PoE-Out current limit | 0.5 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Click here to download the Datasheet.
