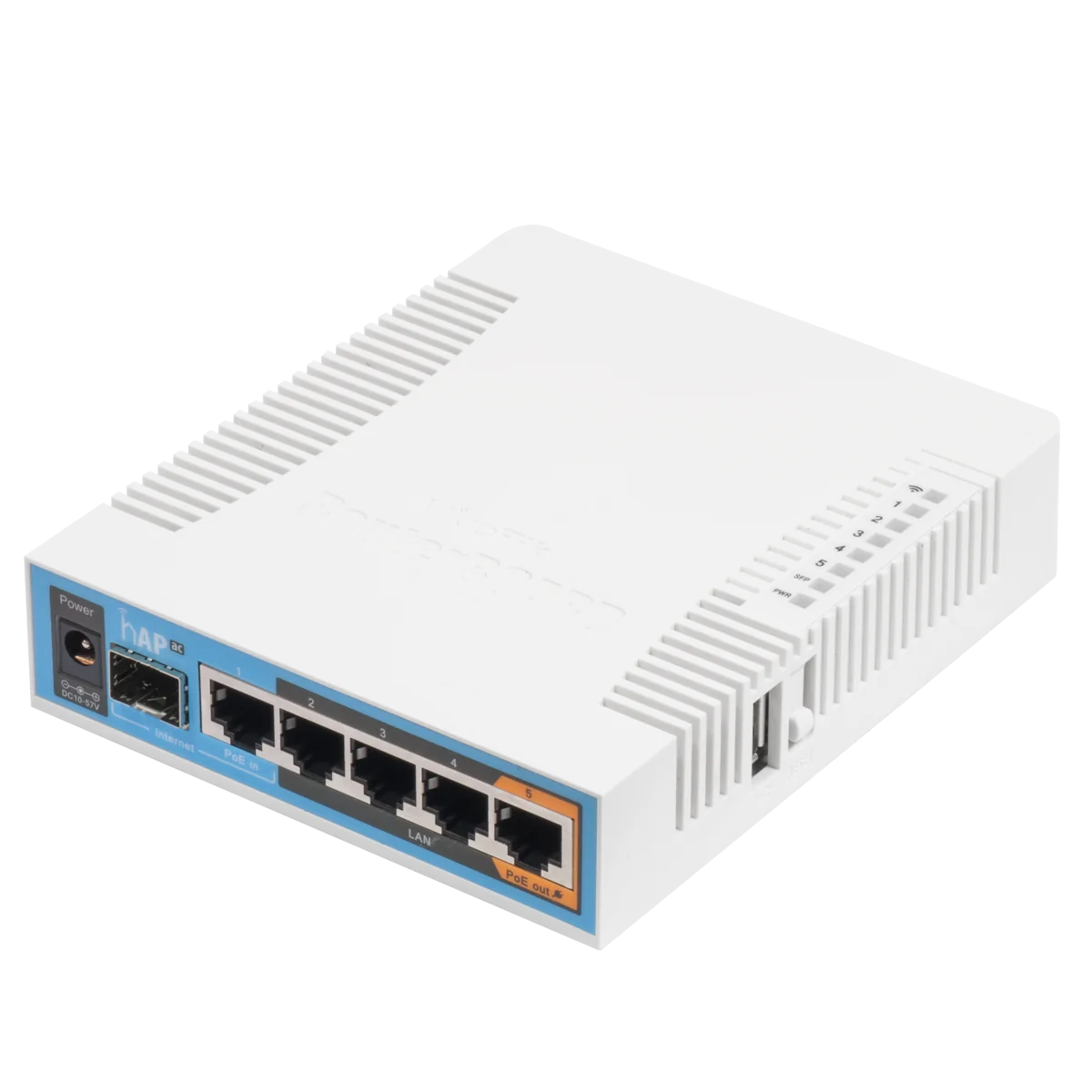

hAP ac

WIRELESS FOR HOME AND OFFICE

Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage

C$ 1,060.00

Call for availability

Guaranteed Safe Checkout

Features & Compatibility

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4×25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Obviously, there is an Ethernet port for management purposes as well.We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

Specifications

Details
Product code CRS504-4XQ-IN
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX4310
Dimensions 320 x 185 x 44 mm
RouterOS license 5
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 3 (PoE-IN, 2-pin terminal, DC jack)
DC jack input Voltage 36-57 V
2-pin terminal input Voltage 36-57 V
Frequency (Hz) 47-63
Max power consumption 41 W
Max power consumption without attachments 25 W
Cooling type 2 fans
PoE in 802.3 bt
PoE in input Voltage 43-57 V

Ethernet

Details
10/100 Ethernet ports 1

Fiber

Details
Number of 100G QSFP28 ports 4

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Additional information

Brand

Mikrotik
