HARDWARE FEATURES
Interface	1× 10G Ethernet Port
Button	Reset
Power Supply	802.3bt PoE or 12V/2.5A DC
Power Consumption	Support Smart Power Comsuption Management • 24.05 W (802.3bt, full functionality); • 20.92 W (12/2.5A, full functionality); • 22.4 W (802.3at decrease 6GHz Power); • 10.1. W (802.3af, radio off, only main chip and LAN working)
Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type	• 2.4 GHz: 2× 3.0 dBi • 5 GHz: 2× 3.0 dBi • 6 GHz: 2× 3.0 dBi
Bluetooth	1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.

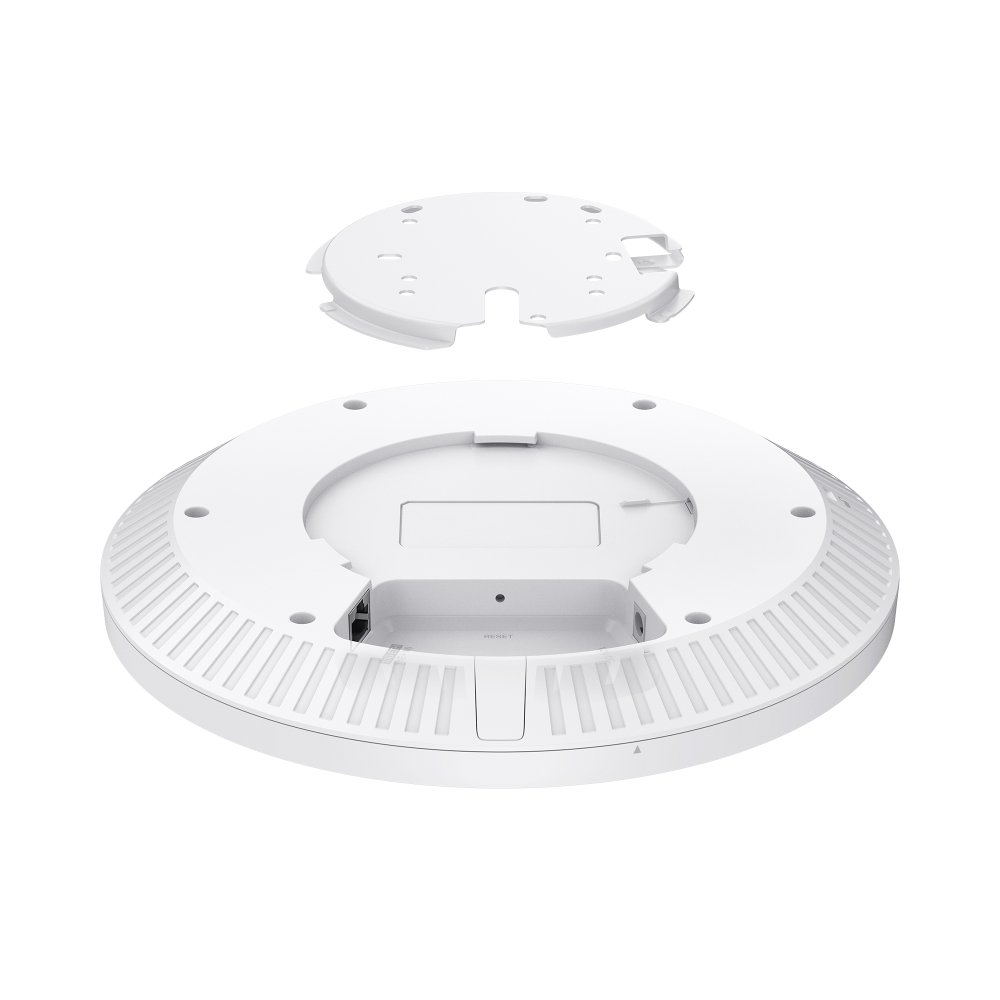

Mounting	Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Wireless Client Capacity	2 GHz: 128^ 5 GHz: 128^ 6 GHz: 128^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)^†
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • MU-MIMO^‡ • HE320^‡ • Mesh^△ • BBS Coloring^‡ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS, IC
Package Contents	• EAP773 • Installation Guide • Ceiling/Wall Mounting Kits Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;

EAP773
