16 x Gbit, 2x 10G SFP+ and more

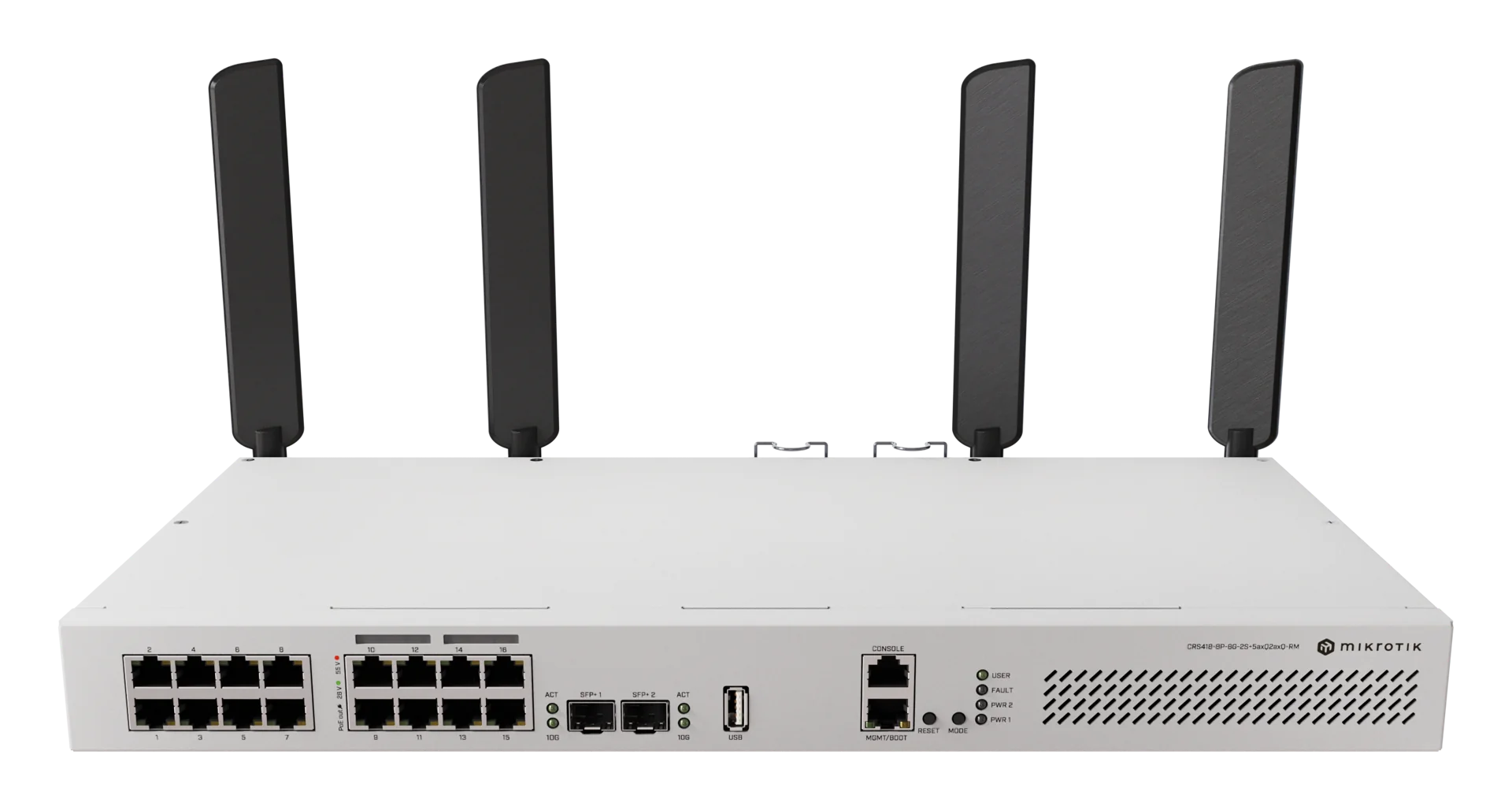

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity. Also, there’s a Gigabit management port with a direct CPU line.
Quad-core CPU
Powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure.
This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!
Wi-Fi where it matters
The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

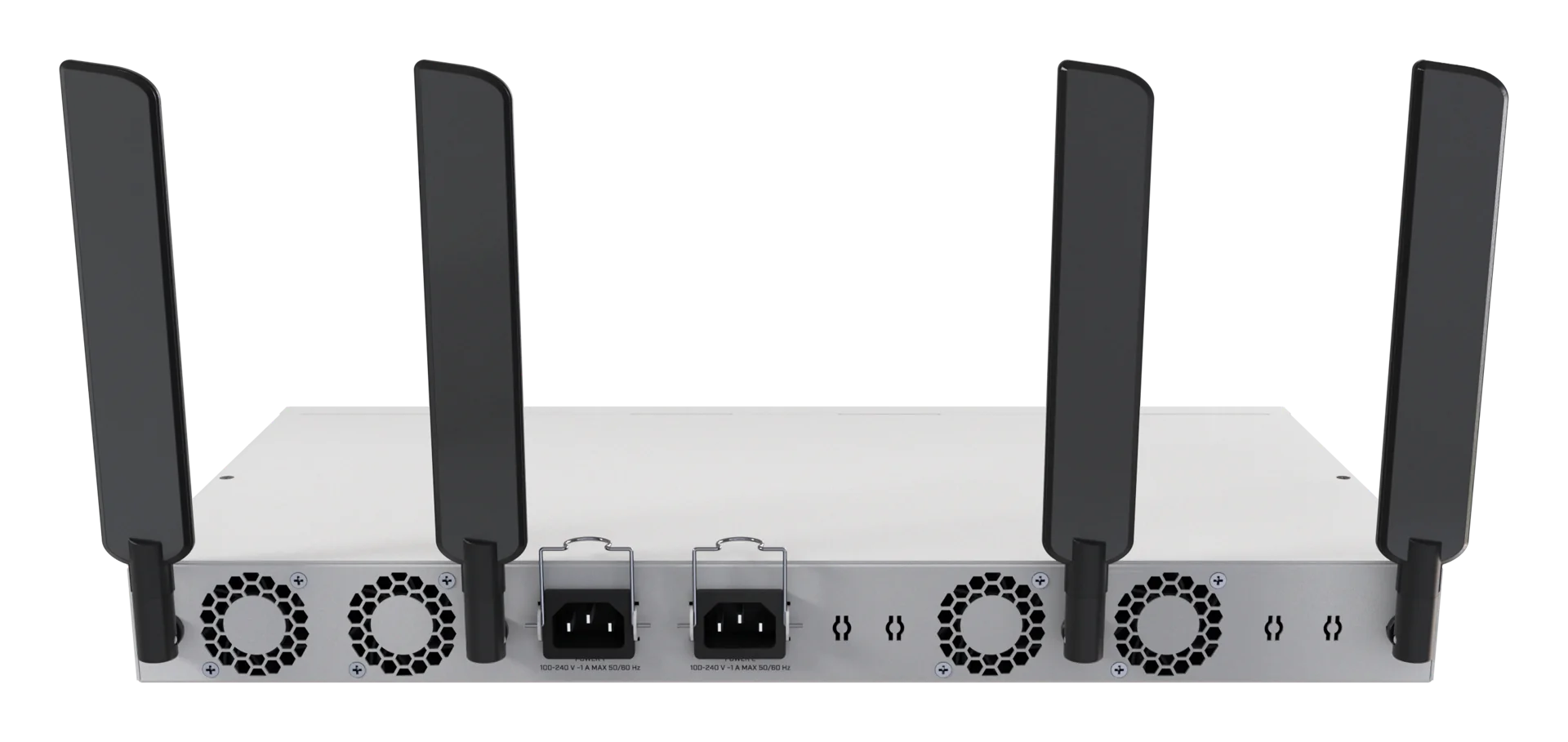

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.
Technical Description
Specifications
Product Details
- Product Code: CRS418-8P-8G-2S+5axQ2axQ-RM
System & Performance
- Architecture: ARM 64-bit
- CPU: IPQ-8072A
- CPU Cores: 4
- CPU Threads: 4
- CPU Frequency: 2208 MHz
- Switch Chip Model: 98DX226S
- Operating System: RouterOS v7
- RouterOS License: Level 5
Memory & Storage
- RAM: 1 GB
- Storage Size: 128 MB
- Storage Type: NAND
Reliability & Environment
- MTBF: ~200,000 hours at 25°C
- Operating Temperature: -20°C to 70°C
Power Details
- AC Inputs: 2
- AC Input Range: 100–240 V
- PSU Slots: 2
- Frequency: 50–60 Hz
- Max Power Consumption: 227 W
- Power Consumption (No Attachments): 43 W
- Cooling System: 4 Fans
PoE-Out Features
- PoE-Out Ports: Ether9 to Ether16
- PoE Standard: 802.3af/at
- Low Voltage Current Limit: 1.1 A
- High Voltage Current Limit: 0.56 A
- Total Output Power: 150 W
Wireless Specifications
2.4 GHz
- Max Data Rate: 1148 Mbps
- Chains: 4
- Standards: 802.11b/g/n/ax
- Antenna Gain: 5 dBi
- Chip Model: QCN-5024
- Generation: Wi-Fi 6
5 GHz
- Max Data Rate: 2400 Mbps
- Chains: 4
- Standards: 802.11a/n/ac/ax
- Antenna Gain: 6 dBi
- Chip Model: QCN-5054
- Generation: Wi-Fi 6
Networking Interfaces
- Ethernet Ports (10/100/1000): 17
- 1G Ethernet Ports with PoE-Out: 8
Fiber Connectivity
- SFP+ Ports: 2
Peripherals & Ports
- Serial Console Port: RJ45
- USB Ports: 1
- USB Type: USB 3.0 Type-A
- Max USB Current: 1 A
- USB Power Reset: Yes
Monitoring & Controls
- CPU Temperature Monitor: Yes
- PCB Temperature Monitor: Yes
- Voltage Monitor: Yes
- Current Monitor: Yes
- Mode Button: Yes
Certifications & Protection
- Certifications: CE, FCC, IC, EAC, RoHS
- IP Rating: IP20
