CRS309-1G-8S+IN

Name: CRS309-1G-8S+IN
Brand: Mikrotik
SKU: CRS309-1G-8S+IN
Price: 321.00 CAD
Availability: OutOfStock

Mikrotik

SWITCHES

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

ENQUIRY!

Original price was: C$ 364.46.Current price is: C$ 321.00.

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

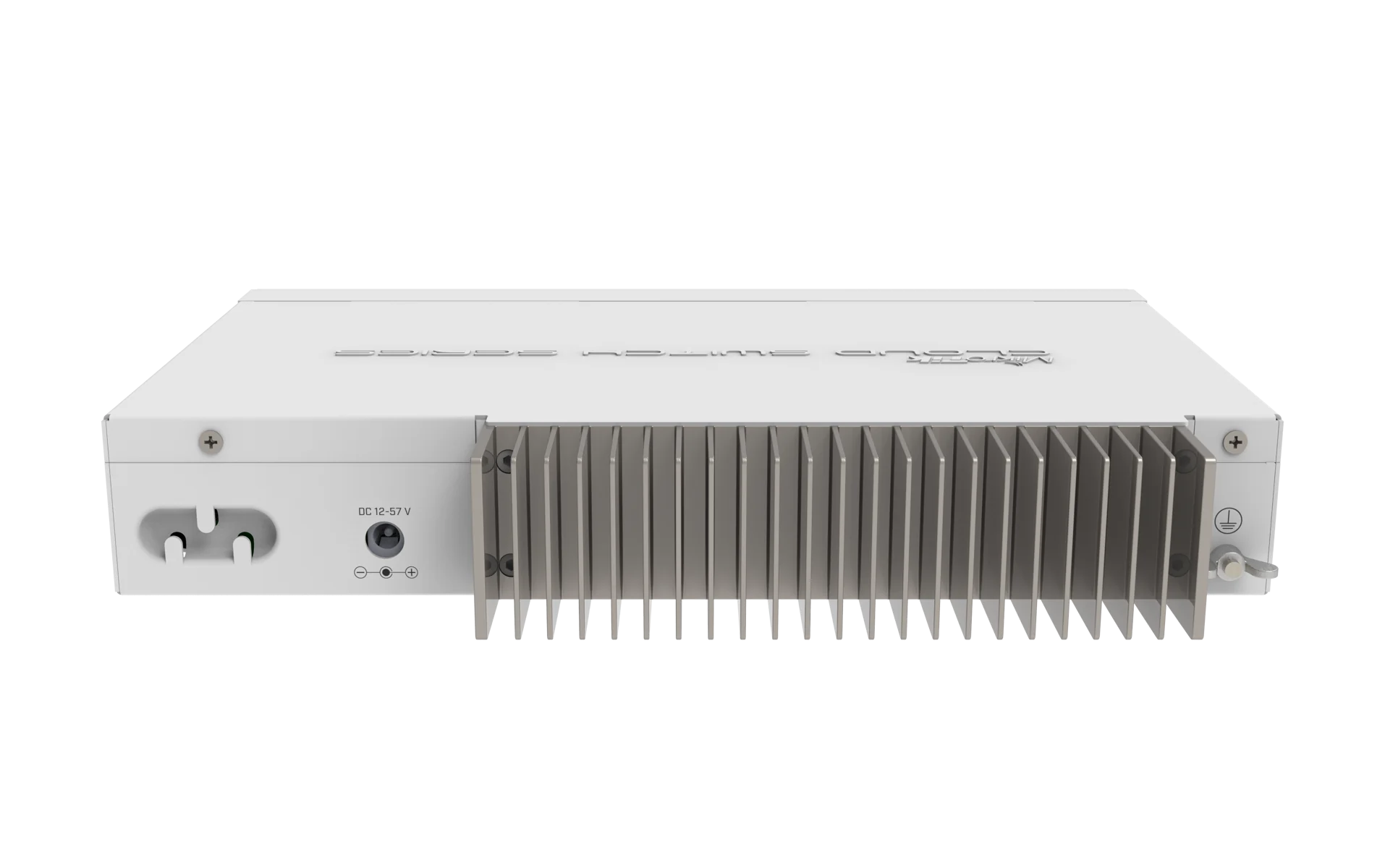

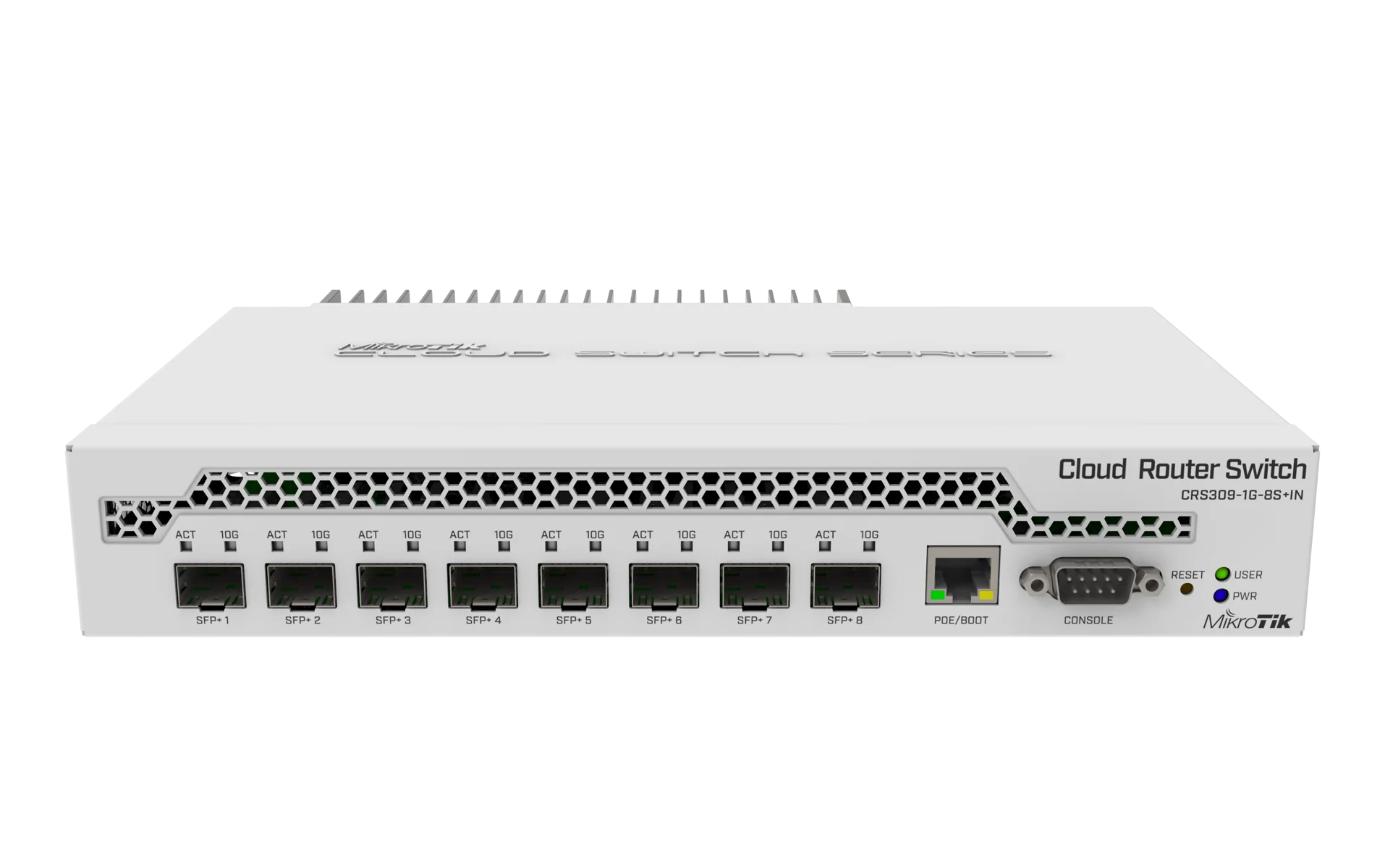

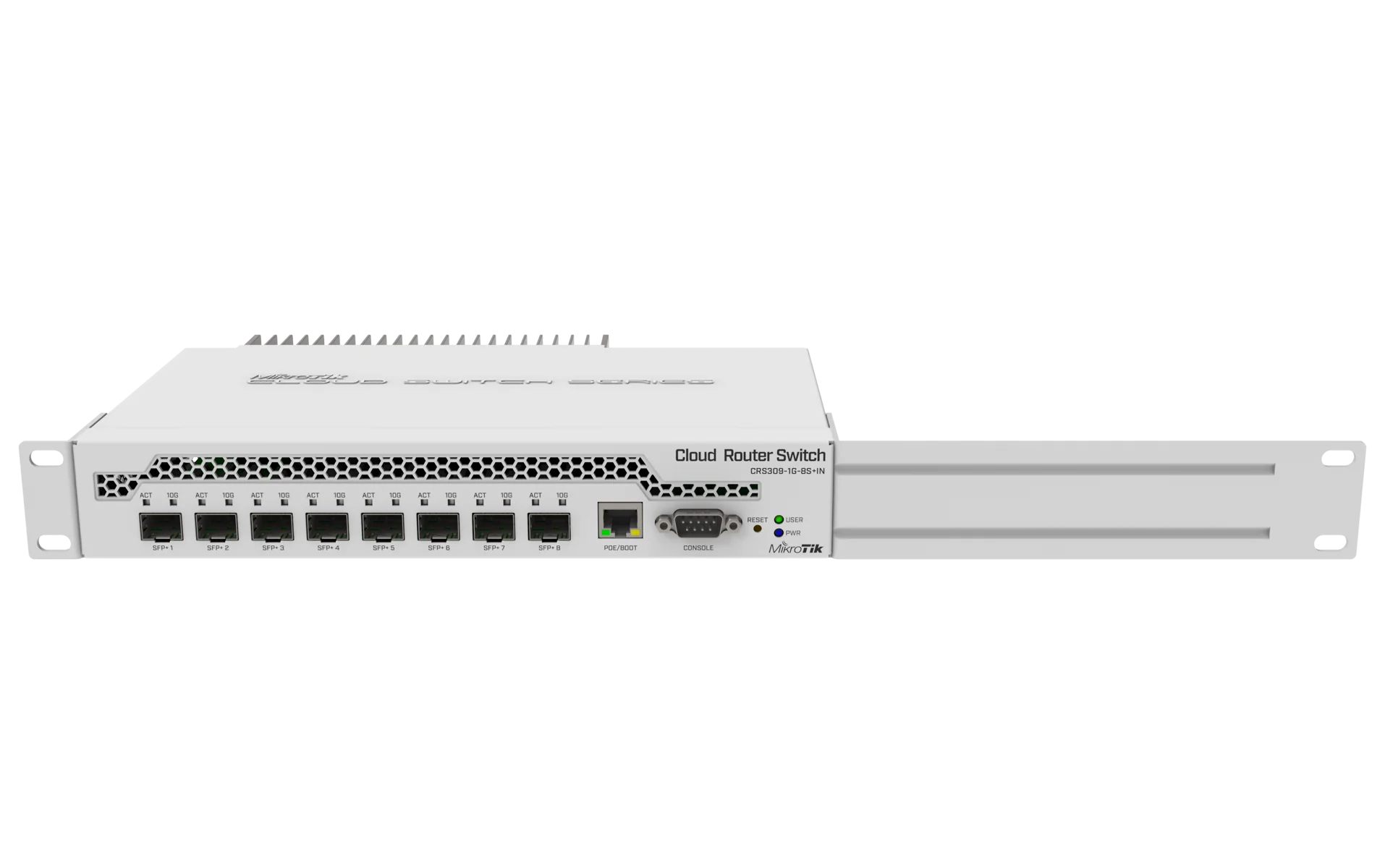

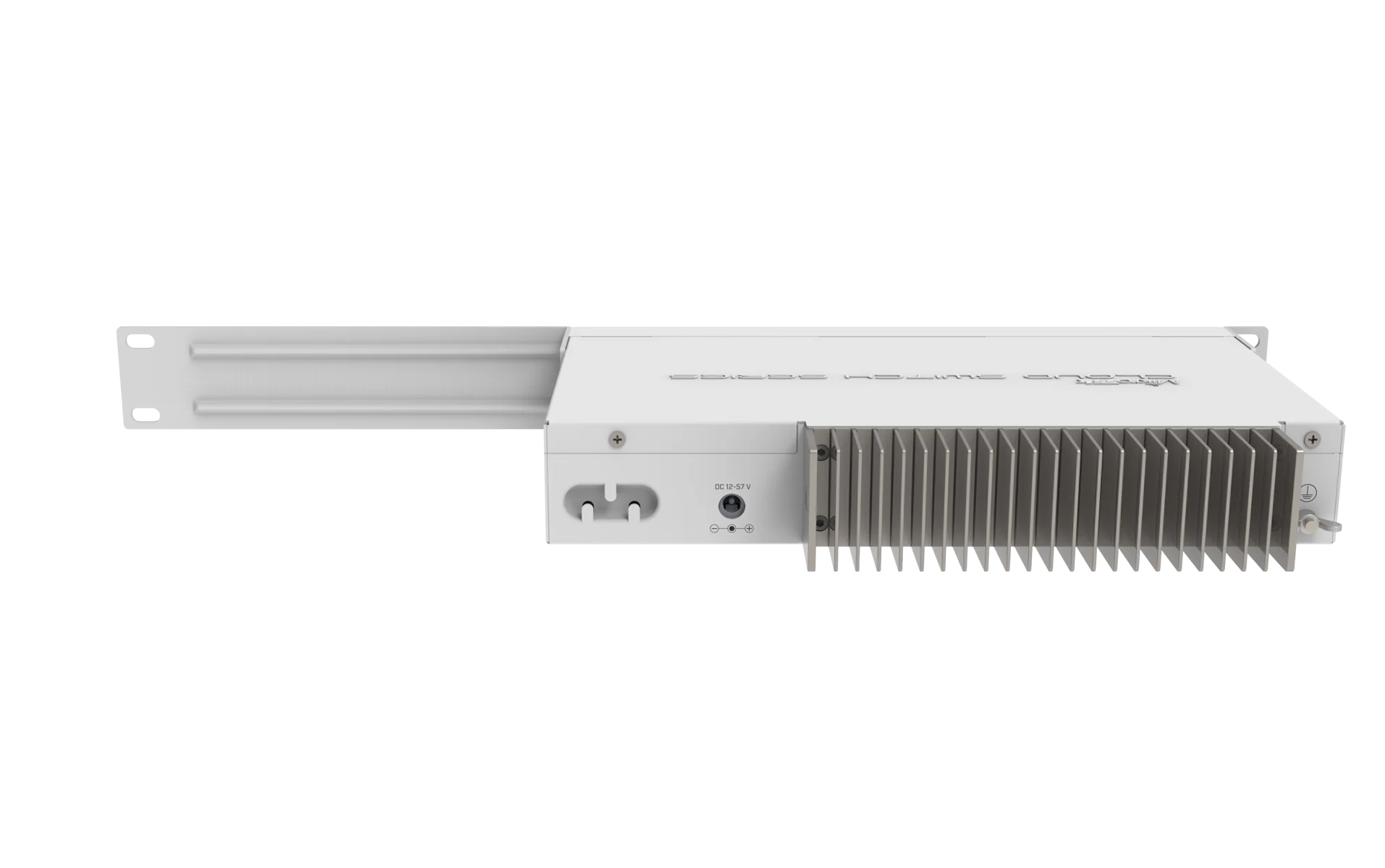

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

DATASHEET

Specifications

Details
Product code	CRS309-1G-8S+IN
Architecture	ARM 32bit
CPU	98DX8208
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX8208
Dimensions	272 x 191 x 44 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	512 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	23 W
Max power consumption without attachments	17 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	18-57 V
