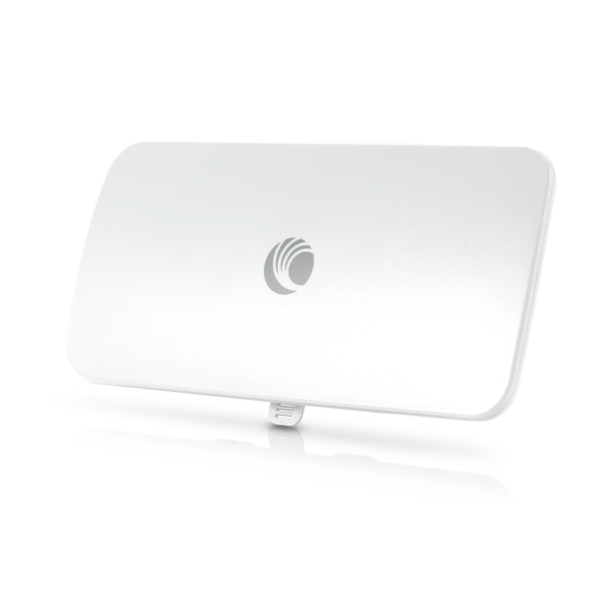

Cambium Networks ePMP 5GHz Force 200AR5-25 High Gain Radio 25 dBi Dish Antenna (ROW) with US cord

Model: C050900C161A

Cambium ePMP 5GHz Force 200 High Gain Radio (ROW) with US cord

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments.The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput.Operating in the 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

FEATURES

• Cambium Networks’ ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of over 200 Mbps of real user data.
• Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
• QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.
• Long deployment range is enabled by the 17 dBi antenna combined with 30 dBm of transmit power.
• This platform can be configured as a Subscriber Module or a high gain PTP radio.

INTERFACE

• MAC (Media Access Control) Layer: Cambium Proprietary
• Proprietary Physical Layer: 2×2 MIMO/OFDM
• Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
• Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
• Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
• VLAN: 802.1Q with 802.1p priority

ANTENNA SPECIFICATIONS (5 GHZ SPECIFICATION)

• Frequency Range: 5150 – 5970 MHz
• Antenna Type: Dish
• Peak Gain: 25 dBi
• 3dB Beamwidth-Azimuth: 7°
• 3dB Beamwidth-Elevation: 7°
• Front-To-Back Isolation: >25 dB
• Cross Polarization: >15 dB
